| 使用PB開發來電管理軟件 |
| chen在2007/8/5發表，被瀏覽8725次
|
適合對象：記得來電顯示管理器
開發環境：PowerBuilder
下載范例：JDDemoPB.rar
下載控件：MSCOMM.rar
注意：需要使用ActiveX控件MSCOMM32.OCX
方法：選擇“Insert”-〉“Control”-〉“OLE...”-〉“Insert Object”-〉“Insert Control”-〉“Microsoft Communications Control”
?Generated Application Objectforward
global type jddemo1 from application
string appname = "jddemo1"
string displayname = "來電顯示"
end type
global jddemo1 jddemo1
on jddemo1.create
appname="jddemo1"
message=create message
sqlca=create transaction
sqlda=create dynamicdescriptionarea
sqlsa=create dynamicstagingarea
error=create error
end on
on jddemo1.destroy
destroy(sqlca)
destroy(sqlda)
destroy(sqlsa)
destroy(error)
destroy(message)
end on
event open;Open(Form1)
end event
?forward
global type form1 from window
end type
type lb_1 from listbox within form1
end type
type ole_1 from olecustomcontrol within form1
end type
type cb_2 from commandbutton within form1
end type
type cb_1 from commandbutton within form1
end type
type ddlb_1 from dropdownlistbox within form1
end type
type st_1 from statictext within form1
end type
end forward

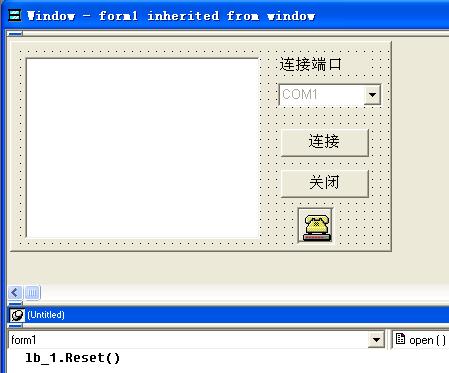

global type form1 from window
integer width = 1765
integer height = 960
boolean titlebar = true
string title = "來電顯示"
boolean controlmenu = true
boolean minbox = true
boolean maxbox = true
boolean resizable = true
long backcolor = 67108864
lb_1 lb_1
ole_1 ole_1
cb_2 cb_2
cb_1 cb_1
ddlb_1 ddlb_1
st_1 st_1
end type
global form1 form1
on form1.create
this.lb_1=create lb_1
this.ole_1=create ole_1
this.cb_2=create cb_2
this.cb_1=create cb_1
this.ddlb_1=create ddlb_1
this.st_1=create st_1
this.Control[]={this.lb_1,&
this.ole_1,&
this.cb_2,&
this.cb_1,&
this.ddlb_1,&
this.st_1}
end on
on form1.destroy
destroy(this.lb_1)
destroy(this.ole_1)
destroy(this.cb_2)
destroy(this.cb_1)
destroy(this.ddlb_1)
destroy(this.st_1)
end on
event open;lb_1.Reset()
end event
type lb_1 from listbox within form1
integer x = 59
integer y = 56
integer width = 1074
integer height = 728
integer taborder = 20
integer textsize = -10
integer weight = 400
fontcharset fontcharset = ansi!
fontpitch fontpitch = variable!
fontfamily fontfamily = swiss!
string facename = "Arial"
long textcolor = 33554432
boolean sorted = false
borderstyle borderstyle = stylelowered!
end type
type ole_1 from olecustomcontrol within form1
event oncomm ( )
integer x = 1303
integer y = 656
integer width = 174
integer height = 152
integer taborder = 40
borderstyle borderstyle = stylelowered!
boolean focusrectangle = false
string binarykey = "form1.win"
integer textsize = -10
integer weight = 400
fontcharset fontcharset = ansi!
fontpitch fontpitch = variable!
string facename = "Arial"
long textcolor = 33554432
end type
type cb_2 from commandbutton within form1
integer x = 1230
integer y = 508
integer width = 402
integer height = 112
integer taborder = 30
integer textsize = -10
integer weight = 400
fontcharset fontcharset = ansi!
fontpitch fontpitch = variable!
fontfamily fontfamily = swiss!
string facename = "Arial"
string text = "關閉"
end type
event clicked;//關閉端口。
ole_1.object.PortOpen = FALSE
lb_1.AddItem("已關閉連接")
end event
type cb_1 from commandbutton within form1
integer x = 1230
integer y = 344
integer width = 402
integer height = 112
integer taborder = 20
integer textsize = -10
integer weight = 400
fontcharset fontcharset = ansi!
fontpitch fontpitch = variable!
fontfamily fontfamily = swiss!
string facename = "Arial"
string text = "連接"
end type
event clicked;
String s
Integer k
Integer l
Integer i
Integer p
String ss
//使用COM1端口。
ole_1.object.CommPort = Integer(Right(ddlb_1.Text,1))
//設置速率為9600,無奇偶校驗，8 位數據，一個停止位。
ole_1.object.Settings = "9600,N,8,1"
//讀入整個緩沖區的數據。
ole_1.object.InputLen = 1
//打開端口
ole_1.object.PortOpen = True
lb_1.Reset()
lb_1.AddItem("已連接，正在監聽...")
//等待數據。
Do while True
Do
Yield()
//從Com端口取數據
if not ole_1.object.portopen then Return
s += ole_1.object.Input
LOOP Until(Pos(s, char(85) + char(85) + char(85) + char(85) + char(85) + char(85)) > 0) //Hex=55
Do
Yield()
s = ole_1.object.Input
Loop Until s <> ""
K = Asc(s)
Do
Yield()
s = ole_1.object.Input
Loop Until s <> ""
l = Asc(s)
i = 0
ss = ""
Do
Yield()
s = ole_1.object.Input
If s <> "" Then
ss = ss + s
i = i + 1
End If
Loop Until i >= l
//復合數據格式
If k = 128 Then //Hex=80
p = Pos(ss, Char(1))
if p > 0 Then
l = Asc(Mid(ss, p + 1, 1))
lb_1.AddItem("來電時間: " + Mid(ss, p + 2, l))
End If
p = Pos(ss, Char(2))
If p > 0 Then
l = Asc(Mid(ss, p + 1, 1))
lb_1.AddItem("來電號碼: " + Mid(ss, p + 2, l))
End If
End If
// 單數據格式
If k = 4 Then
lb_1.AddItem("來電時間: " + Mid(ss, 1, 8))
lb_1.AddItem("來電號碼: " + Mid(ss, 9, l - 8))
End If
ss = ""
Loop
end event
type ddlb_1 from dropdownlistbox within form1
integer x = 1216
integer y = 160
integer height = 400
integer taborder = 10
integer textsize = -10
integer weight = 400
fontcharset fontcharset = ansi!
fontpitch fontpitch = variable!
fontfamily fontfamily = swiss!
string facename = "Arial"
long textcolor = 33554432
string text = "COM1"
boolean allowedit = true
string item[] = {"COM1","COM2","COM3","COM4"}
borderstyle borderstyle = stylelowered!
end type
type st_1 from statictext within form1
integer x = 1225
integer y = 56
integer width = 402
integer textsize = -10
integer weight = 400
fontcharset fontcharset = ansi!
fontpitch fontpitch = variable!
fontfamily fontfamily = swiss!
string facename = "Arial"
long textcolor = 33554432
long backcolor = 67108864
string text = "連接端口"
boolean focusrectangle = false
end type
|
|
|
|
|
